An open-source Autodesk Fusion 360 simulation suite that programmatically builds a fully-articulated, 3D-printable Optimus Prime G1 robot and runs a 9-module kinematic simulation — all driven remotely via the Model Context Protocol (MCP).
This project brings the legendary Autobots leader from the Transformers franchise to life — from the 1984 Generation 1 animated series — as the first fully working 3D-printable CAD model of Optimus Prime with complete servo-driven kinematic simulation, robot-to-truck transformation, and FDM-printable hardware integration.
140+ bodies across 19 assemblies — torso, head, pelvis, arms, legs, backpack, ion blaster, and more. Every component modelled with real hardware integration.
18× MG996R (9.4 kg·cm) + 6× MG90S (1.8 kg·cm) with exact cavities, mounting brackets, and wire channels pre-cut.

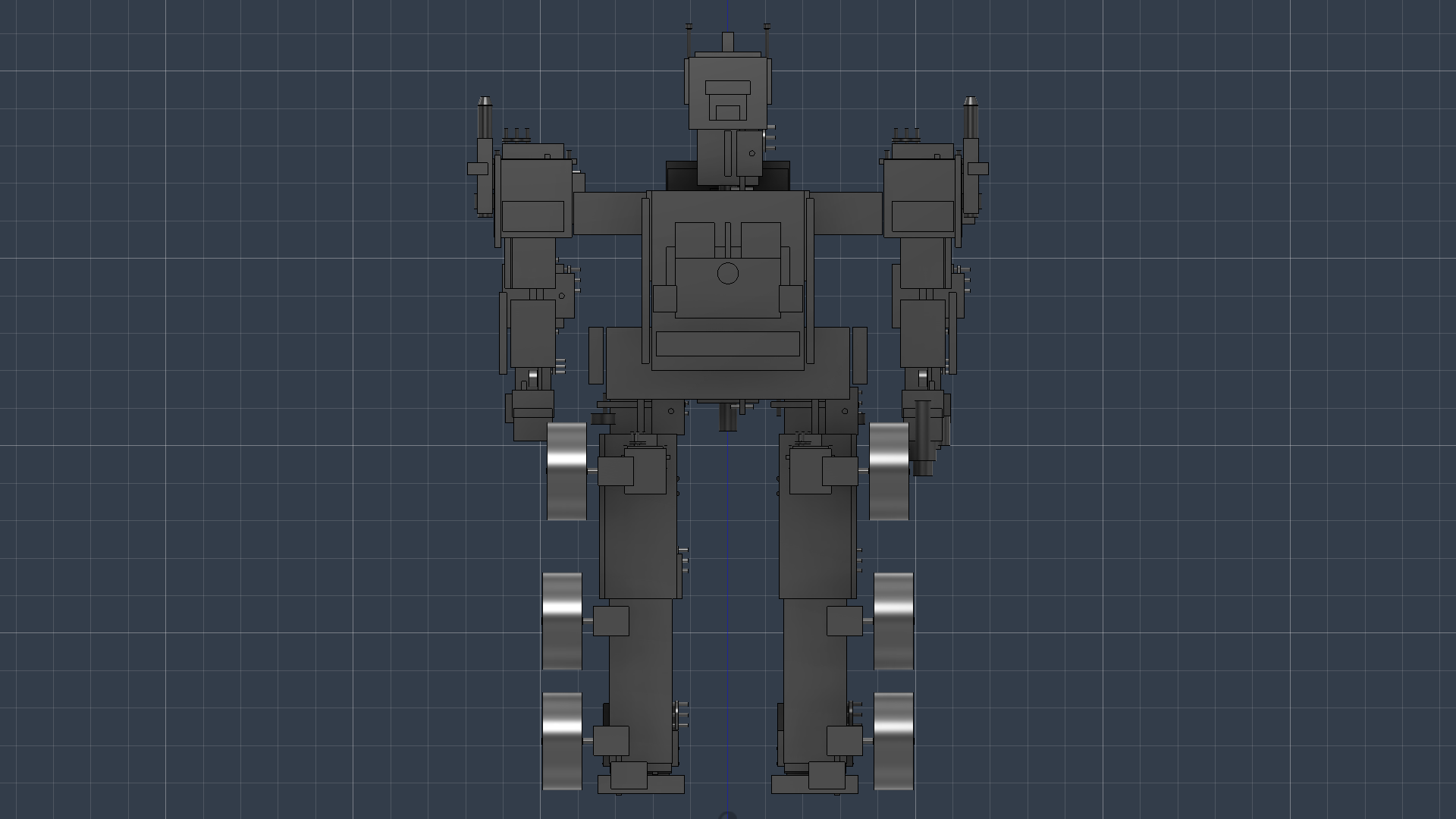

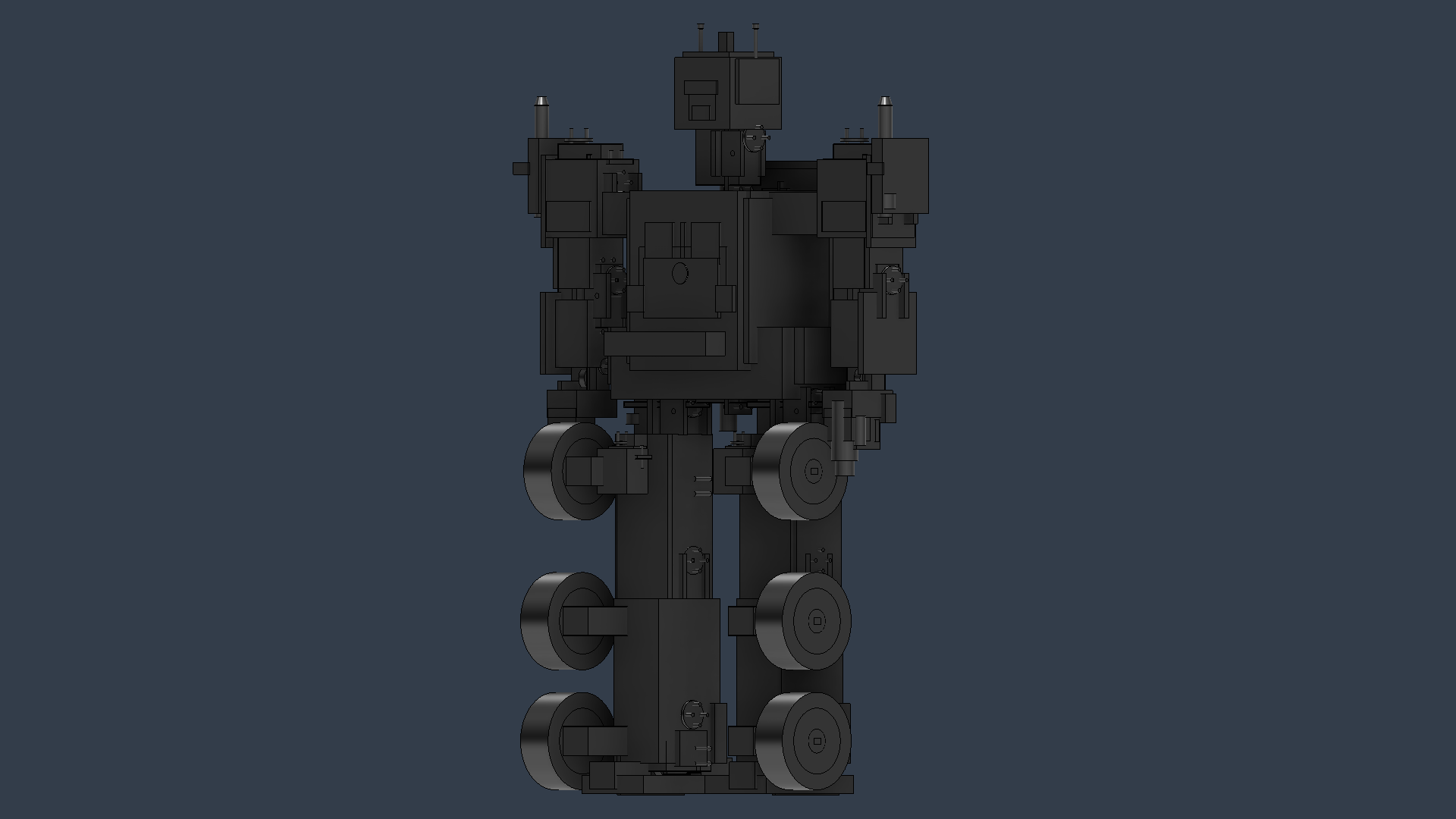

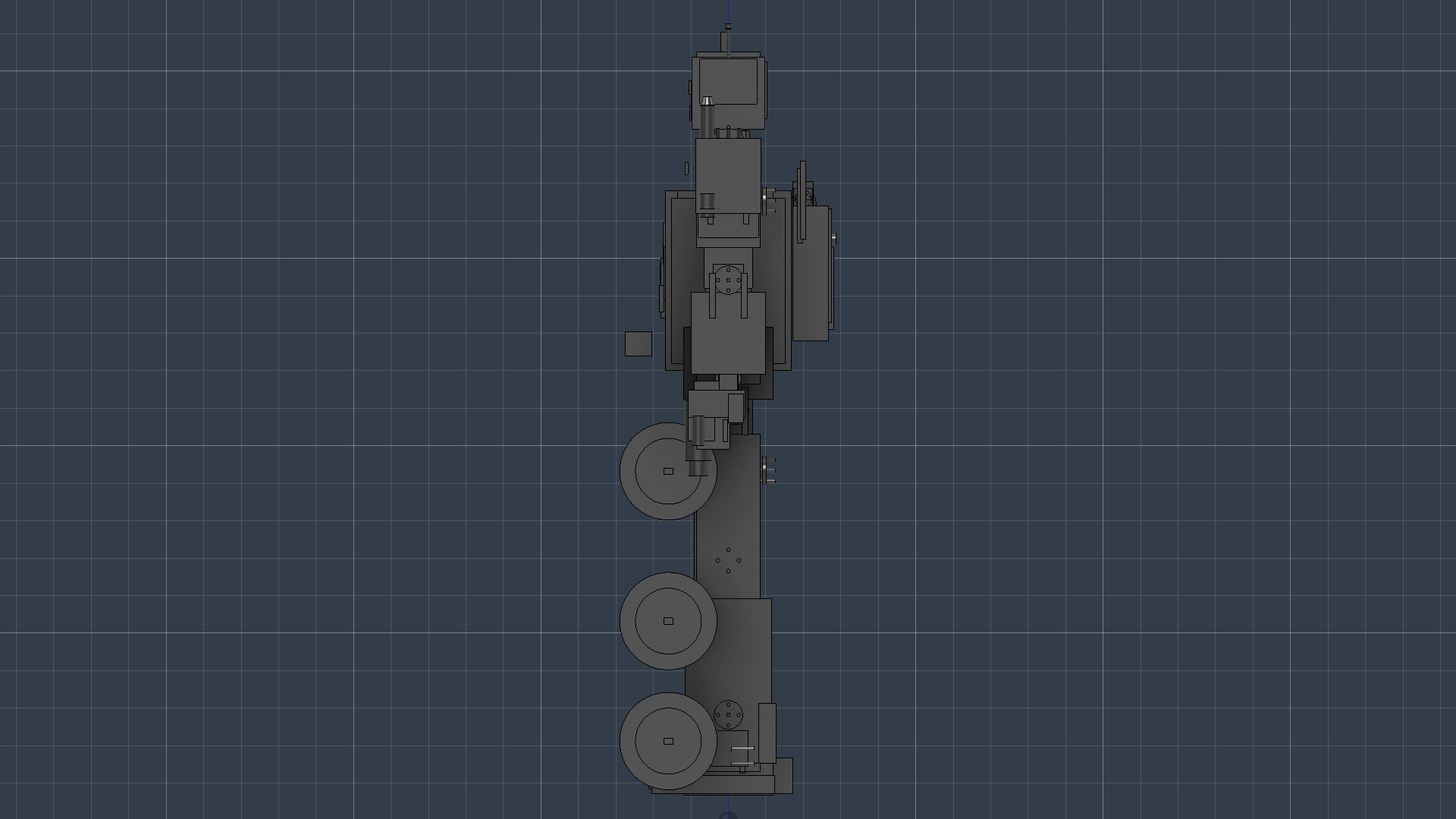

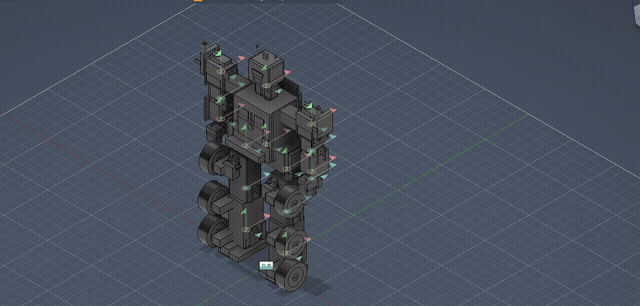

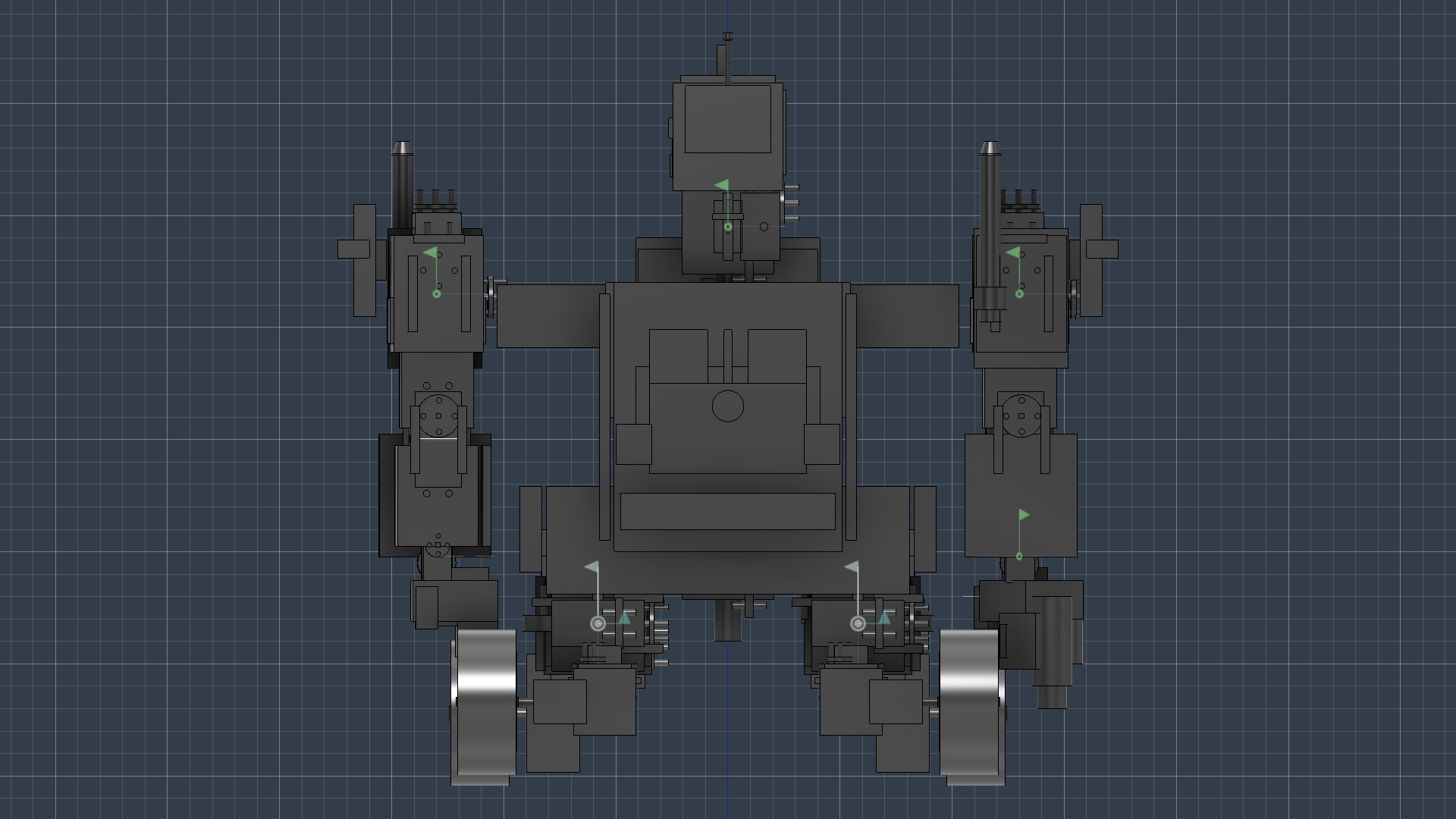

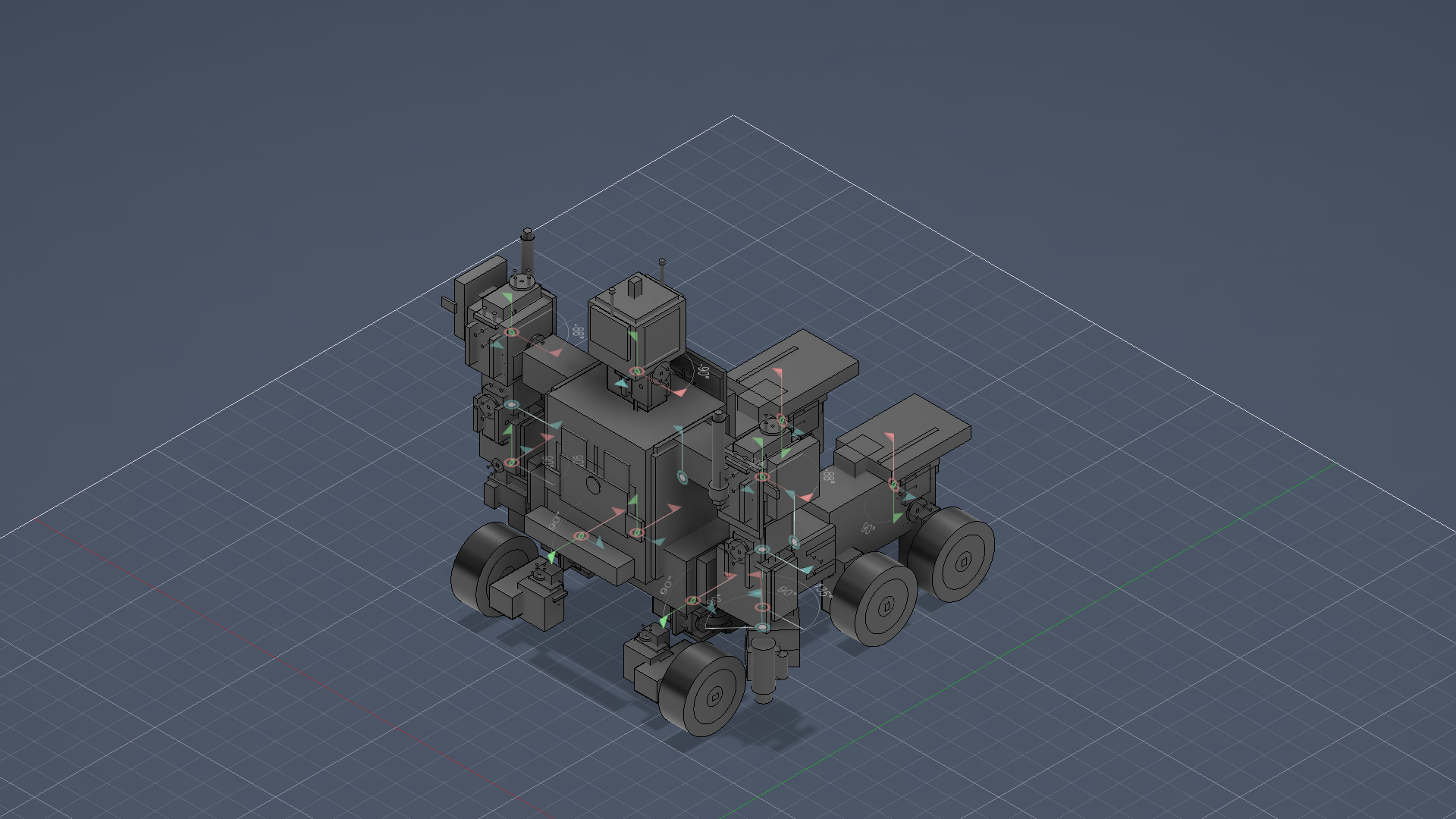

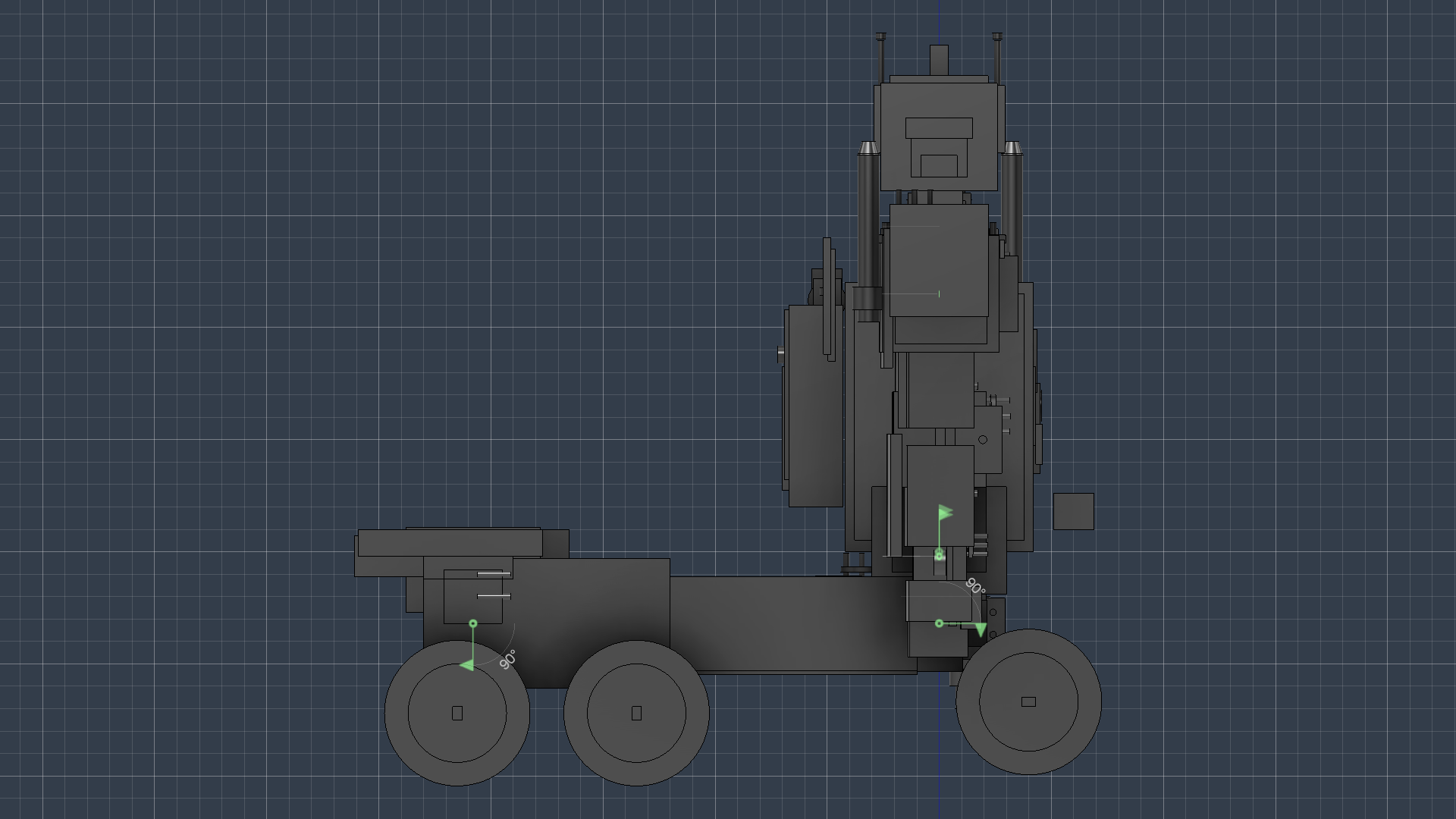

Full 9-stage transformation sequence with interference checking. Animate robot-to-truck-to-robot seamlessly.
ROM test, head scan, wave, breathing, walking, running, combat, transformation, stability analysis — all with collision detection.
0.60 mm FDM clearance, Y-axis midplane splitting, M3 screw holes, Ø6.4 mm magnet pockets, and cable routing channels pre-integrated.
Export to STL (3D printing), STEP (CAD/CAM), URDF (ROS/Gazebo), and F3D (Fusion 360 archive).
Clone the repository, enable MCP in Fusion 360, and run the simulation in 2 minutes.
git clone https://github.com/itsPremkumar/Optimus_Prime.git
cd Optimus_Prime
python src/run_simulation.py --module robot --capture| Component | Quantity | Details |
|---|---|---|
| Servo Motors | 24 | 18× MG996R + 6× MG90S |
| TT Gear Motors | 6 | Yellow gearbox + rubber tire wheel assemblies |
| Bearings | 23 | 5 sizes (ro 0.80–1.30) |
| Joints | 18 | 10 ball (3-DOF) + 5 revolute (1-DOF) + 3 rigid (0-DOF) |
| Screw Holes (M3) | 16 | Pre-cut in torso, thighs, shins, arms |
| Magnet Pockets | 12 | Ø6.4 × 3.5 mm — snap-fit assembly |
| Wire Channels | 9 | Spine (ø12 mm), legs (ø10 mm), arms (ø8 mm) |
| Total Bodies | 140+ | 19 top-level assemblies |
